Current Position: Home > Products > Interactive Display All-in-one

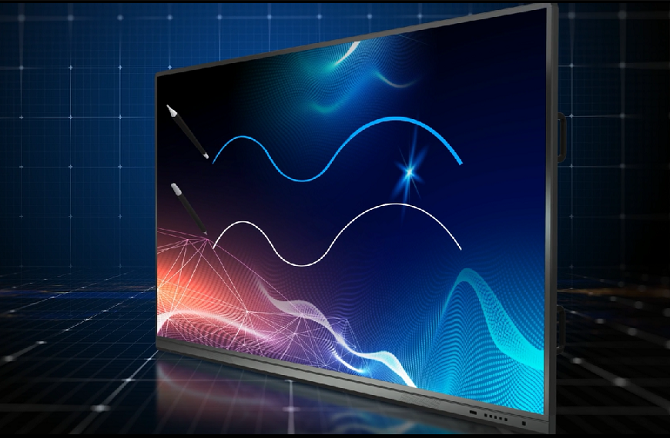

TM3.0 Lite Series IFPD
The TM 3.0 Lite Series of interactive flat panel displays are a cost-effective collaboration solution for education and enterprises.  Ranging in sizes from 65” to 86”, these displays offer UHD 4K crystal clear pictures, and 15-watt front-facing speakers. Users will enjoy the fantastic interactive experience, which supports pen & touch differentiation and simultaneous pen & eraser functionality to realize different colors by different pens or fingers for multiple users.


Typical applications:
Education • Trainng • Conference
HIGHLIGHTS:

♦ UHD 4K Crystal-Clear Image Quality
♦ Fantastic Interactive Experience
♦ Ultra Slim bezel & Ultra-light Weight
♦ Magnetized Pen Tray Design
♦ Powerful Stereo Sound
♦ HID 32 Points Touch
♦ Fat Pen& Slim Pen Distinguish
♦ Pen&Finger & Palm Differentiation
♦ Rich Connectivity
♦ Android 9.0 OS



DISPLAY
SPECIFICATION
Size65", 75", 86"
Screen TypeD-LED (Direct LED Backlight)
Panel BrandLG,AUO
Aspect Ratio 16 : 9
Active Area65”:1427.1mm (H) x 802.1mm(V)
75”: 1649.7mm (H) x 927.9mm (V)
86”: 1895mm (H) x 1066mm(V)
Resolution UHD 4K (3840 x 2160P)
Brightness 350 cd/m2
Contrast Ratio5000:1(65”) /4000:1(75”) /1200:1(86”)
Refresh Rate60Hz
Display Colors1.07 Billion colors
Viewing Angle178°
Glass Type Anti-Glare
Glass Thickness4mm
Glass Hardness9H (pencil) , 7(Mohs)
Audio2*15W
INTERACTIVITY
EXPERIENCE
Touch TechnologySurface Light Wave
Touch Accuracy1mm
Touch ResponseTime4ms
Palm RejectionYes
Gesture Recognition Yes
Pen ID2 Pens
CompatibilityWindows, Mac, Android, Linux, Chrome
Touch ToolsFinger, Pen
ANDROID SYSTEMAndroid OSAndroid 9.0
ARM A53*4@1.5GHz
RAM&EMMC2G+16G
POWERPowerAC 100~240V
Power Consumption65"(250w), 75"(350W) 86"(480W)
Power Consumption (Standby)<1w
PHYSICAL
SPECIFICATIONS
Gross Weight (Without OPS)65”:60±2kg
75”: 75±2kg
86”: 107.7±2kg
Net Weight (Without OPS)65”: 43kg
75”: 61.5kg
86”: 86kg
Product Dimensions(mm)65”: 1486.51mmx914.47mmx95.20mm
75”: 1708.76mmx1039.61mmx95.20mm
86”: 1954.96mmx1177.91mmx95.20mm
