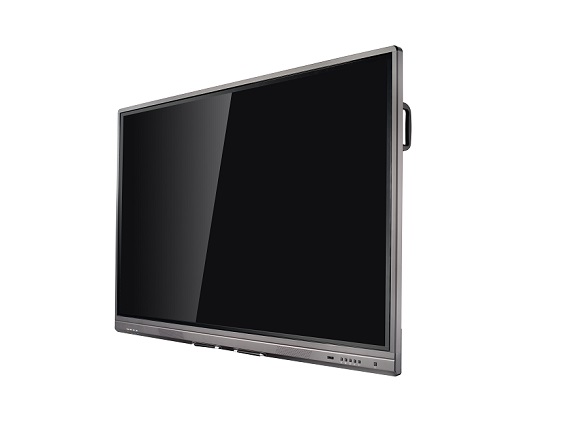

TM3.0 Series Interactive Display

With the TimeLink interactive display you can enjoy the User-Friendly Experience and Fantastic Interactive Experience. Integrate the wireless presentation software, whiteboard software and video conferencing system, make the collaboration more creative and effective.

Typical applications:

♦Business Conference ♦ Education ♦ Healthcare ♦ Hospitality ♦ Public Safety ♦ Retail ♦ Restaurant ♦ Real Estate Industry

Product Features Product Specification Application Scenes Product Video

HIGHLIGHTS:

•Wide Range of Sizes: 65”, 75”, 86”

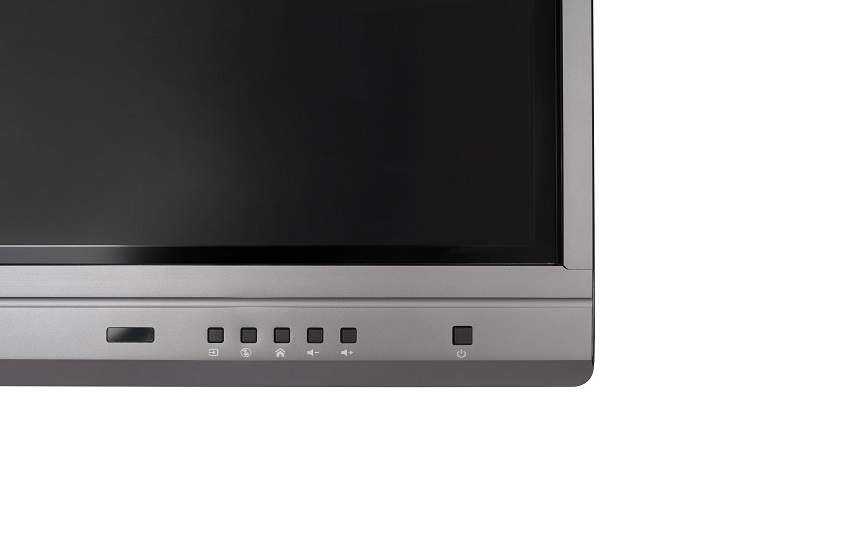

• Unique Appearance Design: 15mm ultra slim bezel & particular bottom bezel design
• User-Friendly 4K UI Design:
- Different UI for Education and Enterprise
- Pop up floating menu by gesture on any source
• Industry-leading Interactive Experience:
- HID 32 touch points
- Distinguish between small pen, fat pen, finger and palm. Writing and erasing simultaneously - Windows Tools Compatible: Microsoft whiteboard & Windows Sketch & Ink
• Practical Whiteboard Software for Windows & Android:
- Practical gesture recognition
- Multiple smart writing tool options: Pen, pencil, marker, fountain, brush, highlighter, etc. - Screen split function allows for independently operating on each screen
• Collaborative Presentations:
Share and interact with your presentation on-screen instantly with wireless projection software
• Highly-configurable Android OS: Built-in Android 8.0

DISPLAY SPECIFICATION	Size	65", 75", 86"
	Screen Type	D-LED （Direct LED Backlight）
	Panel Brand	LG,AUO
	Aspect Ratio	16 : 9
	Active Area	65”:1427.1mm (H) x 802.1mm(V) 75”: 1649.7mm (H) x 927.9mm (V) 86”: 1895mm (H) x 1066mm(V)
	Resolution	UHD 4K (3840 x 2160P)
	Brightness	350 cd/m2
	Contrast Ratio	5000:1(65”) /4000:1(75”) /1200:1(86”)
	Refresh Rate	60Hz
	Display Colors	1.07 Billion colors
	Viewing Angle	178°
	Glass Type	Anti-Glare
	Glass Thickness	4mm
	Glass Hardness	9H (pencil) , 7(Mohs)
	Audio	2*15W
INTERACTIVITY EXPERIENCE	Touch Technology	Surface Light Wave
	Touch Accuracy	1mm
	Touch ResponseTime	4ms
	Palm Rejection	Yes
	Gesture Recognition	Yes
	Pen ID	2 Pens
	Compatibility	Windows, Mac, Android, Linux, Chrome
	Touch Tools	Finger, Pen
APPLICATIONS	Android OS	Android 8.0 ARM A732@1.5GHz, A532@1.5GHz
APPLICATIONS	RAM&EMMC	4G+32G
POWER	Power	AC 100~240V
	Power Consumption	65"(250w), 75"(350W) 86"(480W)
	Power Consumption (Standby）	<1w
PHYSICAL SPECIFICATIONS	Gross Weight (Without OPS)	65”:60±2kg 75”: 75±2kg 86”: 107.7±2kg
	Net Weight (Without OPS）	65”: 43kg 75”: 61.5kg 86”: 86kg
	Product Dimensions(mm)	65”: 1486.51mmx914.47mmx95.20mm 75”: 1708.76mmx1039.61mmx95.20mm 86”: 1954.96mmx1177.91mmx95.20mm
